What are the types of cartridge heaters? Feature & Benefit

Extra-Long Cartridge Heaters

Cartridge heaters are an electric heating element used in various industrial and commercial applications. These heaters are designed to be inserted into a hole or bore, and they heat the surrounding material. Different cartridge heaters are available, each with unique features and benefits. You will learn about several cartridge heaters applications in this article.

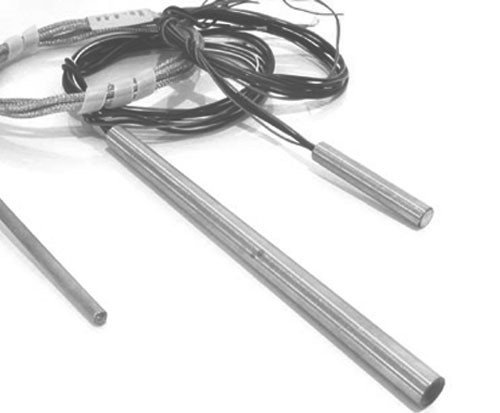

High-Density Cartridge Heaters



  • Description and Design Features

High-density cartridge heaters are designed to provide high watt density in a small space. They are made from high-quality materials and can operate at temperatures up to 1800°F. The heaters are available in various dimensions and can be customized to fit specific applications.

High-Density Cartridge Heaters

  • Applications and Benefits

High-density cartridge heaters are commonly used in applications where space is limited. They are also used in applications requiring high temperatures, such as in the plastics and rubber industries. These heaters are known for their fast heat-up times and their ability to maintain a consistent temperature.

  • Considerations and Limitations

When using high-density cartridge heaters, it is important to ensure that the surrounding material can handle the high temperatures generated by the heaters. It is also essential to ensure that the heaters are properly installed to prevent damage to the surrounding material.

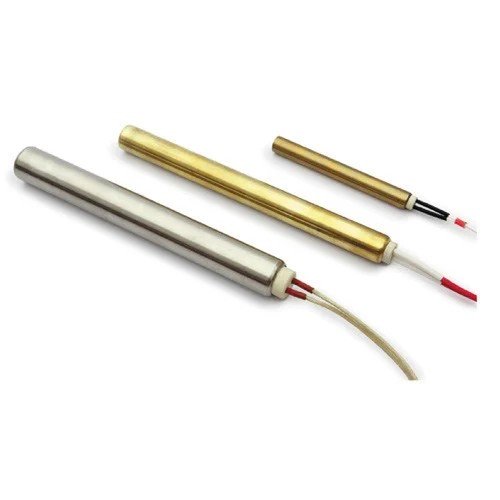

Low-Density Cartridge Heaters



  • Description and Design Features

Low-density cartridge heaters are designed to provide a consistent temperature over a larger area. They are made from high-quality materials and can operate at temperatures up to 1200°F. The heaters are available in a range of dimensions and can be customized to fit specific applications.

Low-Density Cartridge Heaters

  • Applications and Benefits

Low-density cartridge heaters are commonly used in applications where a consistent temperature is required, such as in the food and beverage industry. They are also used in applications where space is not limited. These heaters are known for their long life and their ability to maintain a consistent temperature.

  • Considerations and Limitations

When using low-density cartridge heaters, it is important to ensure that the surrounding material is appropriately insulated to prevent heat loss. It is also significant to ensure that the heaters are properly installed to avoid damage to the surrounding material.

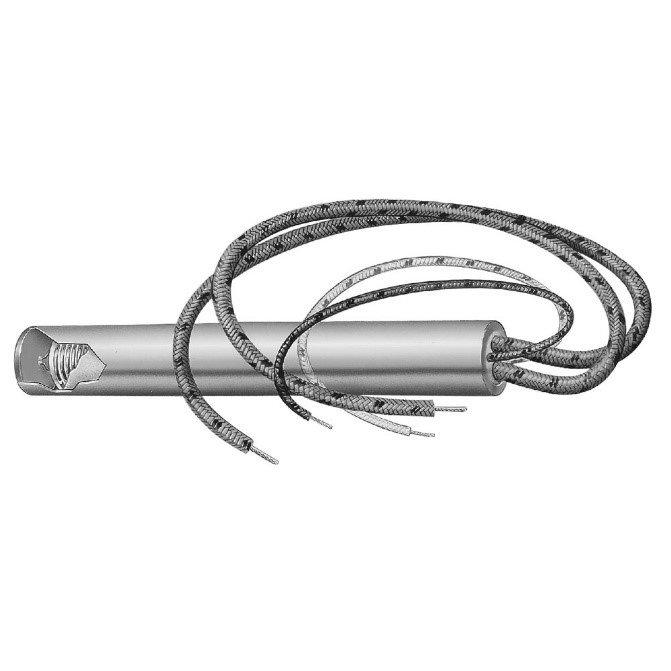

Split-Sheath Cartridge Heaters



  • Description and Design Features

Split-sheath cartridge heaters are designed to provide a more even heat distribution. They are made from high-quality materials and can operate at temperatures up to 1200°F. The heaters are available in various dimensions and can be customized to fit specific applications.

Split-Sheath Cartridge Heaters

  • Applications and Benefits

Split-sheath cartridge heaters are commonly used in applications where more even heat distribution is required, such as in the plastics and rubber industries. They are also used in applications where the surrounding material is sensitive to high temperatures. These heaters are known for their long life and their ability to provide a more even heat distribution.

  • Considerations and Limitations

When using split-sheath cartridge heaters, it is crucial to ensure that the surrounding material is appropriately insulated to prevent heat loss. It is also vital to ensure that the heaters are installed correctly in order to avoid damage to the surrounding material.

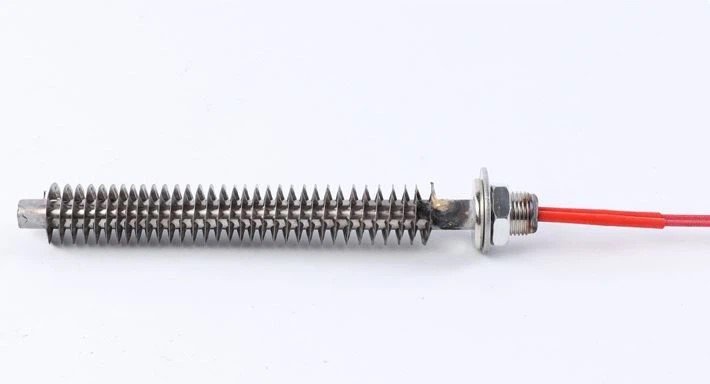

Finned Cartridge Heaters



  • Description and Design Features

Finned cartridge heaters are designed to provide a larger surface area for heat transfer. They are made from high-quality materials and can operate at temperatures up to 1200°F. The heaters are available in various dimensions and can be customized to fit specific applications.

Finned Cartridge Heaters

  • Applications and Benefits

Finned cartridge heaters are commonly used in applications requiring a larger surface area for heat transfer, such as in the heating and cooling industry. They are also used in applications requiring a more even heat distribution. These heaters are known for their long life and their ability to provide a larger surface area for heat transfer.

  • Considerations and Limitations

When using finned cartridge heaters, it is vital to ensure that the surrounding material is properly insulated to prevent heat loss. It is also essential to ensure that the heaters are adequately installed in order to avoid damage to the surrounding material.

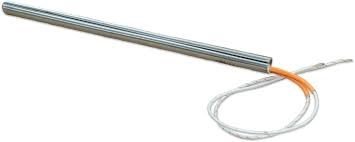

Extra-Long Cartridge Heaters



  • Description and Design Features

Extra-long cartridge heaters are designed to provide heat over an extended area. They are typically longer than standard cartridge heaters, with lengths ranging from 12 inches to several feet. These heaters are made with high-quality materials, including stainless steel, nickel-chromium, and other alloys. ExtrA-long cartridge heaters are designed to provide uniform heat distribution over their entire length, making them ideal for applications that require a large surface area to be heated.

Extra-Long Cartridge Heaters

  • Applications and Benefits

Extra-long cartridge heaters are used in various industrial and commercial applications. They can be used in packaging equipment, food processing machinery, plastic injection molding machines, and other equipment that requires extended heating. These heaters are also used in the aerospace and automotive industries, where they are used to heat engine blocks, transmission cases, and other large components.

One of the main benefits of extra-long cartridge heaters is their ability to provide uniform heat distribution over an extended area. This makes it ideal for applications where consistent heat is required. Additionally, these heaters are designed to be durable and long-lasting, even in harsh industrial environments. Extra-long cartridge heaters are also easy to install and maintain, making them a cost-effective heating solution.

  1. Considerations and Limitations

When selecting an extra-long cartridge heater, it is essential to consider the application requirements. These heaters are available in various lengths and diameters, so choosing the right size for your application is essential. Additionally, it is crucial to consider your application’s voltage and wattage requirements to ensure that the heater can provide the necessary heat output.



Customized/Engineered Cartridge Heaters



  • Description and Design Features

Customized or engineered cartridge heaters are designed to meet specific application requirements. These heaters are made to order, with custom lengths, diameters, and wattages. They are made with high-quality materials, including stainless steel, nickel-chromium, and other alloys. These heaters are designed to provide uniform heat distribution, even in complex shapes and configurations.

Customized/Engineered Cartridge Heaters

  • Applications and Benefits

Customized or engineered cartridge heaters are used in various industrial and commercial applications. They can be used in packaging equipment, food processing machinery, plastic injection molding machines, and other equipment that requires specific heating requirements. These heaters are also used in medical and scientific equipment where precise heating is needed.

One of the main benefits of customized or engineered cartridge heaters is their ability to meet specific application requirements. These heaters can be made to fit complex shapes and configurations, making them ideal for applications where standard heaters are not suitable. Additionally, these heaters are designed to be durable and long-lasting, even in harsh industrial environments.

  • Considerations and Limitations

When selecting a customized or engineered cartridge heater, it is crucial to consider the specific application requirements. These heaters are made to order, so it is crucial to provide accurate specifications to ensure the heater meets your needs. Additionally, it is vital to consider your application’s voltage and wattage requirements to ensure that the heater can provide the necessary heat output. Customized or engineered cartridge heaters can be more expensive than standard heaters, so it is vital to consider the cost-benefit of a customized solution.



Conclusion:

Selecting the correct type of cartridge heater is crucial for ensuring optimal heating performance and efficiency in various applications. Each cartridge heater offers unique design features, benefits of the cartridge heater, and limitations that must be considered when selecting. If you don’t know how to choose the cartridge heater, click here, we have covered this matter in detail in other articles.

In summary, high-density cartridge heaters are ideal for applications requiring rapid and precise heating, while low-density cartridge heaters offer longer lifespans and lower operating temperatures. Split-sheath cartridge heaters provide convenient installation and maintenance options, while finned cartridge heaters excel in heat dissipation for air or gas heating applications. Extra-long cartridge heaters are designed for heating in deep or hard-to-reach areas, and customized/engineered cartridge heaters cater to specific requirements.
