How to Install a Circulation Heater

Circulation Heater install

Are you in the industrial sector and looking to install a circulation heater? If you’re unfamiliar with the process, don’t worry, I’ve got you covered. Installing a circulation heater may seem daunting at first, but with the proper guidance, it can be a straightforward task that will significantly benefit your operations.

Before we dive into the installation process, let’s first understand the importance of a circulation heater. In industrial settings, circulation heaters are essential for maintaining the temperature of liquids or gasses in tanks or pipelines. They provide efficient heating solutions, ensuring the smooth operation of various processes. With the proper installation, you can optimize your system’s performance and enhance productivity.

In this article, I will guide you through the step-by-step process of installing a circulation heater. From selecting the right heater for your needs to connecting it appropriately and ensuring its functionality, you’ll learn all the necessary details to install a circulation heater in your industrial setup successfully. So, let’s get started and make the installation process a breeze.

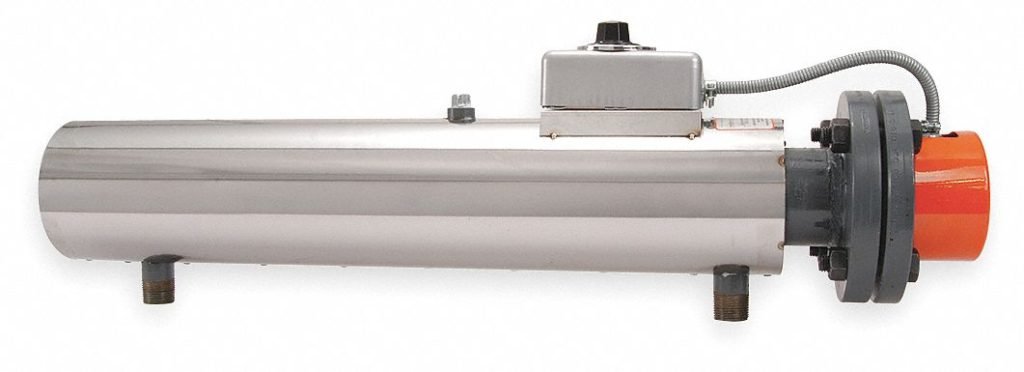

Circulation Heater

Understanding Circulation Heater

Circulation heaters serve a purpose when it comes to maintaining temperatures for fluids. A circulation heater is designed to heat liquids or gases within a system. It comprises a heating coil enclosed in a sheath and housing that ensures efficient heat transfer.

These heaters find application in industries, including gas and oil chemical processing, food and beverage, and water treatment. Let’s dive into understanding circulation heaters.

A circulation heater is designed to heat fluids or gasses as they pass through a system. It consists of components that work together to ensure efficient heating. The main elements comprise:

  1. Heating Element. Typically, an electric heating coil, this element generates heat when an electric current passes through it. It is constructed using high-resistance materials to produce controlled and consistent heat.
  1. Protective Sheath. The heating element is enclosed within a sheath safeguarding it from contact with fluid or gas.

The sheath of a circulation heater is typically made of materials like steel, Incoloy, or titanium, depending on the application and compatibility requirements.

The housing or vessel of the heater serves as the support. Contains the heating element. Its purpose is to facilitate heat transfer from the heating element to the fluid or gas that passes through the circulation heater.

Circulation heaters are equipped with temperature control systems to maintain the desired temperature. These systems can include thermostats, thermocouples, or advanced temperature controllers, depending on the complexity of the system and the level of precision required.



Now let’s discuss the types of circulation heaters for various installation requirements and heating applications:

  1. They have flanged Circulation Heaters. These heaters have flanges that make installation and removal easy. They are commonly used when high flow rates or large heating capacities are needed. Flanged heaters are suitable for heating liquids in tanks, boilers, or process pipelines.
  1. Screw Plug Circulation Heaters. These heaters have threaded fittings that can be directly inserted into tanks or vessels. They have use in medium-sized systems for heating liquids or gasses. Screw plug heaters are known for their versatility and ease of installation, making them popular in applications like water heaters or oil heating.
  1. Immersion Circulation Heaters. Immersion heaters are specifically designed to be submerged into the fluid or gas they are heating. They are commonly utilized in tanks, baths, or sumps where direct contact with the medium is feasible. Immersion heaters provide heating. They suit various liquids, including water, oils, and chemicals.

In this article, I introduced in detail what a circulation heater is.

Circulation Heater

Applications and industries utilizing circulation heaters.

Circulation heaters find application across a wide range of industries and processes. Several common sectors that make use of circulation heaters include:

  1. Oil and Gas. Circulation heaters are employed in oil refineries, pipelines, and storage tanks to maintain oil viscosity, prevent freezing, and enable transportation.
  1. Chemical Processing. These heaters find application in chemical plants for tasks such as heating liquids, preheating feedstock, or ensuring temperatures during reactions.
  1. Food and Beverage: Circulation heaters play a role in the food and beverage industry for purposes like heating liquids, pasteurization, maintaining temperatures during cooking, or aiding fermentation.
  1. Water treatment facilities utilize circulation heaters for applications such as disinfecting water by heating it, maintaining temperatures in water storage tanks, or preventing pipes from freezing.

In power plants, circulation heaters play a role in heating feed water for steam generation. They are ensuring appropriate temperatures in heat exchangers and boilers.

These are a few examples of industries and applications that benefit from the versatility and effectiveness of circulation heaters. They are components in heating processes.

Click here to learn more about it.



The advantages of installing a circulation heater

Installing a circulation heater brings benefits to both processes and everyday applications. Primarily it guarantees the maintenance of desired temperatures, essential for preserving the quality and integrity of fluids or gasses within a system. Whether it’s preventing freezing or ensuring temperatures during production, circulation heaters offer heating solutions.

Additionally, circulation heaters improve energy efficiency by eliminating the need for heat sources. They minimize heat loss by heating the fluid or gas as it flows through the system. Reduce energy consumption compared to conventional heating methods. This does not save costs. It also promotes sustainability.

Furthermore, circulation heaters enhance process control and efficiency. Precise temperature control is a feature of circulation heaters ensuring conditions for various industrial processes. This level of control guarantees product quality, improved production rates, and minimizes downtime caused by temperature-related issues.

advantages



Pre Installation Preparation



Assessing the heating requirements and determining the size of the circulation heater

Before installing a circulation heater, it is vital to evaluate the heating needs of your system. Consider the desired temperature range, fluid or gas flow rate, and system volume or size. These factors will help determine the size and power rating of the circulation heater required for effective heating.

Consulting manufacturer specifications and guidelines can provide insights into circulation heaters’ heating capacity and performance. It is crucial to select a heater that aligns with your system’s requirements to ensure heating performance.B. Select the circulation heater for your application.

  When choosing the appropriate circulation heater, various options are available. It’s crucial to consider factors such as the type of fluid or gas being heated, the operating conditions (temperature pressure), and any specific requirements set by the industry or regulations.

  For instance, choosing a circulation heater with a compatible material such as titanium or Teflon coated is essential if you need to heat liquids. A flanged or screw-plug heater might be more suitable if you’re looking for installation or removal.

  Understanding the requirements of your application will enable you to decide when to select the correct type of circulation heater.



Assessing the compatibility of the heater with the fluid or medium

  Ensuring that the circulation heater is compatible with the heated medium is crucial for safe and efficient operation. Consider factors like compatibility, viscosity, and any specific characteristics of the fluid or gas.

  Certain fluids or gases may require considerations, such as using materials for corrosion or explosion-proof designs. To determine if the circulation heater suits your liquid or medium, it’s essential to review the manufacturers’ specifications and seek expert advice.



Choosing the installation location and prioritizing safety precautions

Selecting the spot for installing the circulation heater is crucial to ensure its performance and safety. Consider factors like accessibility for maintenance, proximity to the fluid or gas source, and adherence to safety regulations.

Ensure there is space around the heater to allow for heat dissipation and maintenance. Consider safety precautions such as placing the heater from materials ensuring proper ventilation if needed, and following electrical wiring codes and grounding requirements.



By evaluating heating requirements, choosing the type of circulation heater, assessing compatibility with your fluid or medium, and considering safety measures during the pre-installation stage, you’ll lay a solid foundation for a successful and efficient circulation heater installation.



Steps for Installation

Circulation Heater install

  • Gathering the tools and equipment

  Before you start the installation process, ensure you have all the tools and equipment required. These could include wrenches, screwdrivers, electrical connectors, wire strippers, insulation materials, mounting brackets, and any specific components recommended by the manufacturer of the circulation heater. Having everything beforehand will make the installation process smoother and more efficient.

  • Turning off the power supply. Draining the system if necessary

Safety should always come first during the installation process. If applicable, switch off the power supply to the system or equipment where you plan to install the circulation heater. Drain fluids or gases from the system to prevent accidents or damage while installing.

  • Removing any existing equipment or components

If any existing equipment or components in the installation area might interfere with the circulation heater installation, carefully remove them. This may involve disconnecting and removing pipes, fittings, or other heating elements. Follow procedures and precautions. Ensure that the system is safely depressurized and cooled before continuing.

  • Preparing the installation area. Ensuring adequate clearance

  Prepare the installation area to create a safe environment for installing the circulation heater. Clear any debris and ensure ventilation before starting the installation process. It is essential to have space for both the installation and future maintenance access. Consider any clearance requirements the manufacturer states, including the recommended distance from walls, ceilings, or other equipment.

Next, securely mount the circulation heater following the instructions provided by the manufacturer. This might involve mounting brackets or fasteners included with the heater. Ensure the heater is appropriately aligned and firmly attached to its designated location. Pay attention to weight distribution. Follow any suggested orientation for performance.

Carefully connect the wiring of the circulation heater as directed by the manufacturer. Strip the wire ends if necessary, ensuring secure connections. Adhere to codes and safety guidelines providing proper grounding to prevent hazards. If you need clarification, consulting an electrician for assistance is always an idea.

It would be best to do so once the circulation heater is securely mounted and the electrical connections are completed. Adjust the temperature control settings. Depending on the heater model, this may involve adjusting thermostats, configuring temperature controllers, or setting desired temperature limits. Refer to the manufacturer’s guidelines carefully to ensure temperature control and avoid any risks of overheating or underheating.

Before activating the circulation heater and powering the system, it is essential to conduct an inspection. Take the time to carefully check all connections, including fluid/gas lines, for any signs of leaks or loose fittings. Additionally, ensure that all safety features, such as pressure relief valves or temperature sensors, are installed correctly and working as intended. It is crucial to comply with safety standards and regulations during installation.

Always refer to the installation instructions provided by the manufacturer for the circulation heater model in use. By following these instructions diligently, you can guarantee a safe installation of the circulation heater.

After installing the circulation heater, refilling the system with the fluid or medium recommended by the manufacturer is essential. Follow their guidelines regarding the type and quality of liquid or medium used. Take precautions during filling, such as venting air pockets and eyeing levels. Maintaining recommended levels is essential for ensuring the operation of the circulation heater.

Once the system is refilled, it is imperative to test the circulation heater and closely monitor its performance. This step ensures that everything is functioning as expected. Step 1: Power on the system. Carefully observe the circulation heater while it’s running. Ensure that the heater is effectively heating the fluid or gas as intended, and check if the temperature control system works appropriately. Monitor the temperature levels, flow rates, and other relevant factors to ensure the circulation heater operates within the desired range. Calibrate as needed to achieve performance.



Step 2: Troubleshooting issues and providing maintenance recommendations:

In case any problems or malfunctions arise, it’s crucial to troubleshoot the circulation heater. Typical issues may include heating, temperature fluctuations, or abnormal noises. Consult the manufacturer’s troubleshooting guide. Seek assistance from a technician to diagnose and resolve these issues. Additionally, follow recommended maintenance practices such as cleaning, inspecting, and replacing worn-out parts to ensure the efficiency and longevity of the circulation heaters.



Step 3: Understanding safety precautions and regulations:

Even after the installation is complete prioritizing safety remains vital. Familiarize yourself with the safety precautions and regulations for operating and maintaining the circulation heater. This might involve guidelines for safety handling of materials and compliance with industry-specific standards. Regularly inspect safety features, like pressure relief valves and temperature sensors, to ensure their functioning.

Ensure you stay updated with any changes in regulations or best practices to ensure your system remains safe and compliant.

You can take a few steps to ensure the continued functionality and safety of the circulation heater in your system. Firstly make sure to refill the system with the fluid or medium. Secondly, regularly. Monitor the performance of the circulation heater. If any issues arise, troubleshoot them effectively. Lastly, always adhere to safety precautions and regulations.



Conclusion

In conclusion, installing a circulation heater offers benefits. It is crucial across various industries. It helps maintain desired temperatures, improves energy efficiency, enhances process control, and ensures product quality. Circulation heaters provide efficient heating solutions whether you need to prevent freezing, heat corrosive liquids, or optimize production rates.



It is important to emphasize that proper installation procedures are vital for performance and safety. Follow the recommended installation procedures by assessing your heating requirements, choosing the type of circulation heater, evaluating compatibility, and ensuring clearance. Taking the time to understand and adhere to these procedures will help avoid issues and maximize the benefits of your circulation heater.

If there is any confusion, contact our experts. We also produce other heaters, such as duct heaters, and get a quote to get a competitive price.
